Reservoir Tanks

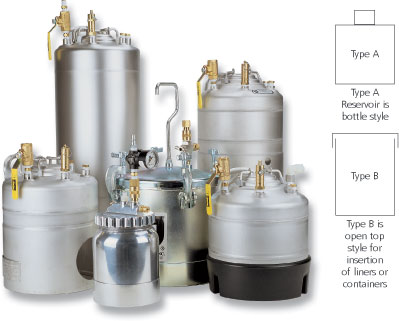

Reservoirs are used to feed bulk fluids to a valve or dispensing pen. A variety of sizes and types is available, including bottom porting for very high viscosity liquids and top porting for low to medium viscosities. An "open top" style is used if liners are required to prevent the material from making contact with the sides of the container or if the fluid requires an agitator.

Models
Model Size Style Ported Base ASME rating Max pressure Regulator Gage Material Hose
I&J2601-107 2 qt bottle top metal no 50 psi 0-60 psi 1/4"
IJ-0100 1gal bottle bottom* metal yes 125 psi 0-100 psi 3/8"
IJ-0100R 1gal bottle top rubber yes 125 psi 0-100 psi 1/4"
IJ-0200 2gal bottle bottom* metal yes 125 psi 0-100 psi 3/8"
IJ-0200R 2gal bottle top rubber yes 125 psi 0-100 psi 1/4"
IJ-83B-500 2.8gal open top top** metal no 80 psi 0-60 psi 1/4"
IJ-83Z-211 2.8gal open top top** metal yes 80 psi 0-60 psi 1/4"
IJ-0300 5gal bottle bottom* metal yes 125 psi 0-100 psi 3/8"
IJ-0300R 5gal bottle top rubber yes 125 psi 0-100 psi 1/4"

All reservoirs are supplied with a 10' (3.05m) material hose and 1/4" (6.35mm) airline

Parts
560554 material shut off valve assembly for reservoirs marked *
IJ-83B-RL replaceable liner for IJ-83B-500 and IJ-83Z-211**
560934 regulator gage (included)
560779 regulator (included)
560944 O-ring EPDM for bottle style reservoirs (included)
560944V Viton O-ring (optional)
